- Описание
-

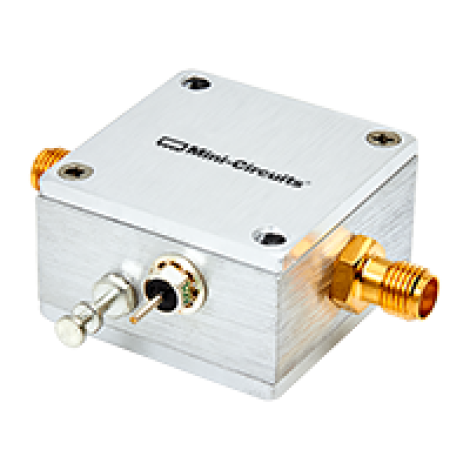

Техническое описание на ZFBT-352-FTB+ Bias-Tee : 50? Wideband 300 to 3500 MHz Maximum Ratings Coaxial Connections RF in (SMA female) RF&DC out (SMA male) DC (feed-through pin) GROUND GROUND Electrical Schematic Operating Temperature -55°C to 100°C Storage Temperature -55°C to 100°C RF Power 30 dBm max. Voltage at DC port 30V max. Input Current 4A DC resistance from DC to RF&DC port 0.11 ohm typ Features • wideband, 300 to 3500 MHz • low insertion loss, 0.5 dB typ. • high DC current, 4A • feed through terminal per DC port • good return loss Applications • biasing amplifiers • biasing of laser diodes • biasing of active antennas • DC return • DC blocking • test accessory. Производитель: Mini Circuits. Сроки поставки 3-5 недель. Мин кол-во по запросу.
